Dual Axle Standard Wheelchairs(Bariatric Wheelchairs)

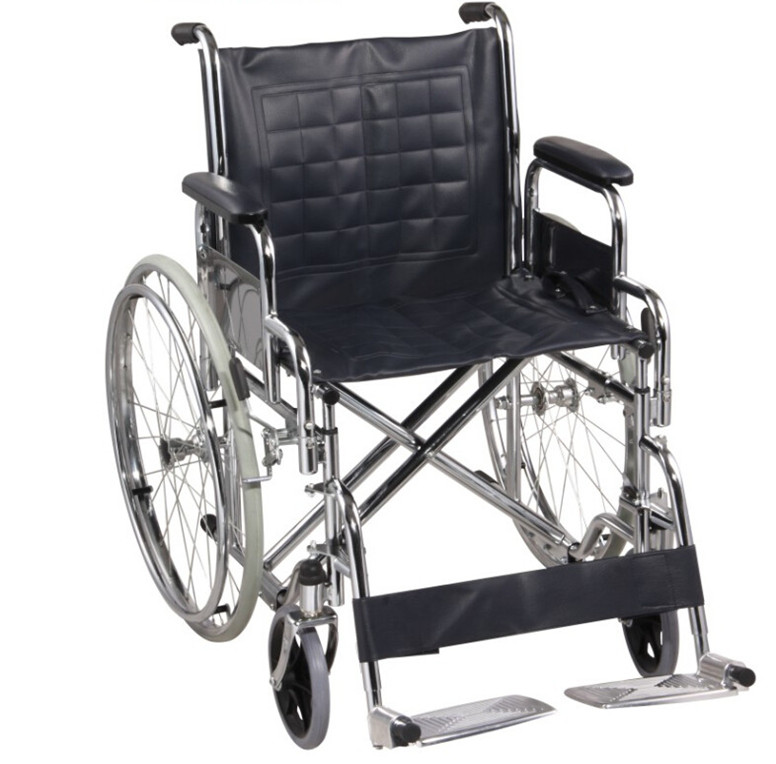

Dual Axle Wheelchair

Features:

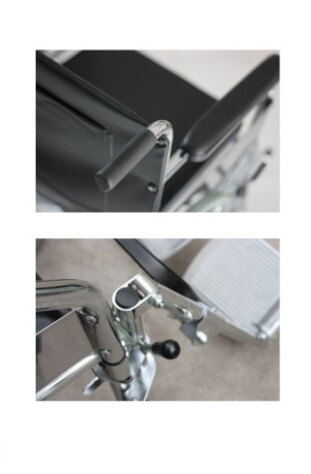

DETACHABLE armrest and footrest

Solid Rubber Tire

Chassis above Ground: steel chromed tube

Front Wheel: 8" Solid PU Tire

Back Wheel: 24" rubber Tire

Cushion: PVC (Vinyl),blue or black

Foot Pedal: aluminum

Guard Board: Stainless

Handle Grove: PVC

Overall height:880mm

Overall width:720mm

Seat:400*510mm

Backrest height:420mm

Hand rim diameter: 502mm

Carton dimension: 770 x 270 x 950mm

Weight capacity: 150kg

Net weight: 22kg

Gross weight: 24kg

A dual axle wheelchair has two parallel axles (posts) that allow the user to easily adjust the seat height from a standard level to a lower "hemi" level for better self-propelling or foot-propelling, especially for shorter users. This adjustment feature enhances user comfort and accessibility for transfers, making them highly versatile standard manual wheelchairs.

How it Works

Adjustable Axle Positions:

The dual axle system features multiple mounting points, enabling you to move the rear wheels and axle up or down.

Hemi-Height Transition:

The lower axle position, known as hemi-height, positions the seat about 2 inches lower than the standard height.

Benefits of Hemi-Height:

This lower position is beneficial for:

Self-Propelling: Users with sufficient upper body strength can more easily reach the floor to propel themselves.

Foot-Propelling: It facilitates users who use their feet to move the chair.

Shorter Individuals: The lower seat height is also ideal for individuals under 5 feet tall.

Who Is It For?

Individuals Needing Flexibility:

Users who require different seat-to-floor heights for various activities or transfers will find the dual axle system beneficial.

Shorter Users:

The ability to lower the seat makes the wheelchair more accessible for shorter individuals.

Self-Propellers:

The hemi-height position supports easier and more efficient self-propulsion by allowing users to reach the floor with their feet.

Key Takeaway

If you need a standard manual wheelchair that offers flexibility in seat height, a dual axle model is an excellent choice. It provides a simple way to customize the wheelchair's ergonomics for improved function and comfort, catering to a wider range of users and needs compared to single-axle models.
